CARTON BOX MAKING MACHINERY LINE
Phu Vinh Phuc owns a new, modern machinery line, advanced technology, and fully equipped machinery to meet the strict and diverse requirements of customers.
Corrugated Carton Machine → Carton Slitting Machine → Printing machine → Carton Slot Cutting Machine → Die-cut Carton Machine → Carton Gluing Machine → Carton Stapling Machine → Tying Machine
1/ CORRUGATED CARTON MACHINE LINE
Corrugated Carton Machine Line includes following main parts: lift-up paper roll part, fluting making part, glue part, papersheets press drying conveyor, slot and dividing board part, cutting board part.
Phu Vinh Phuc Paper Company is equipped with a modern corrugated line 1800mm paper wide size. There are 3 corrugating machines and a 3-stage glue machine to be able to create 7-layer carton boards.
Flute B (2.6-2.9mm), Flute C (3.6-3.9mm), Flute E (1.6-1.9mm)

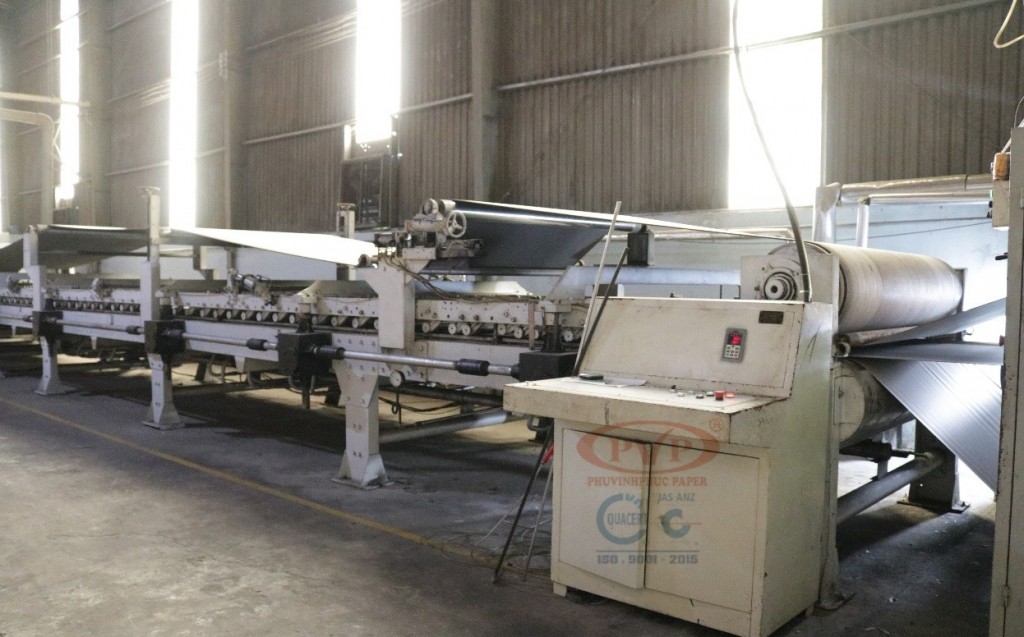

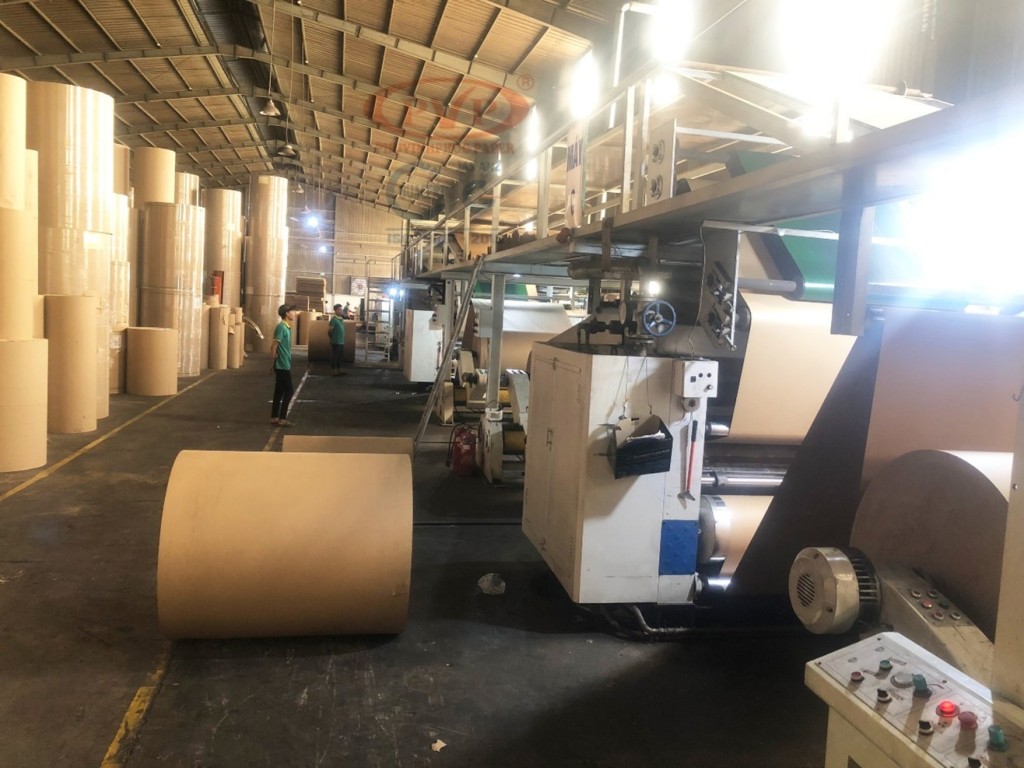

Photo: Corrugated Carton Machine Line
Lift-up paper roll machine: The roll paper is inserted into the roll elevator and passes through a heating roller to adjust the moisture and tension of the paper.

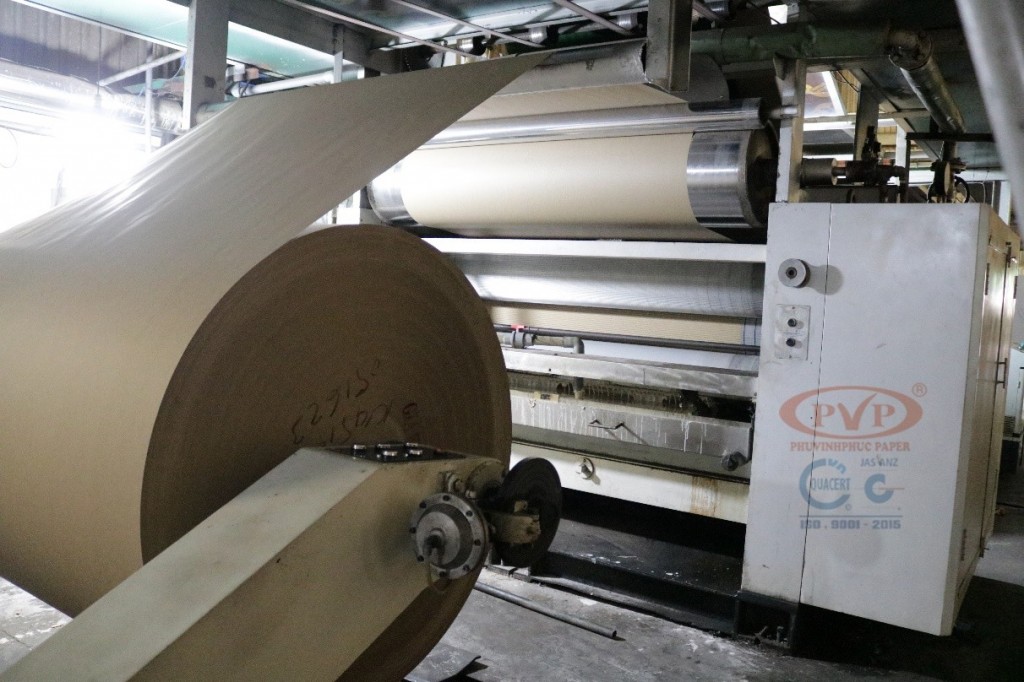

Photo: Lift-up paper roll machine
Single-sided corrugated machine: raw paper is corrugated and glued with another layer of paper to create a 2-layer paperboard.
The conveyor will receive the 2-layer paperboard and pull it through the multi-layer heat dryer to conduct heating again.

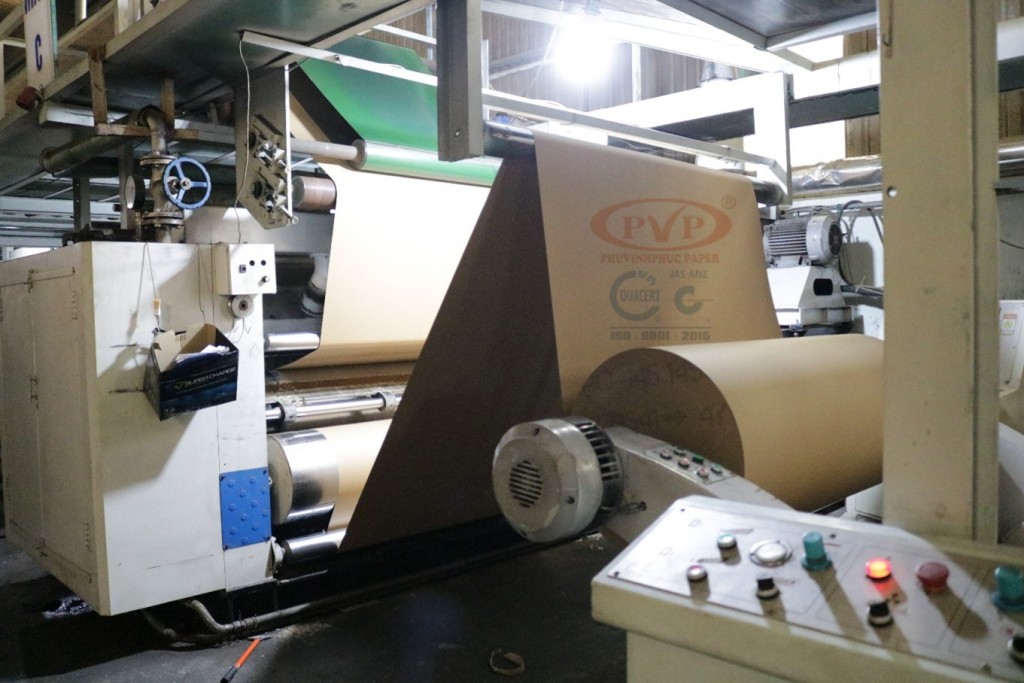

Photo: Single-sided corrugated machine
Multi-layer glue machine: the 2-layer corrugated sheets along with the inner paper layer, go through a multi-layer glue machine before fusing together through the paperboard pressing conveyor.
Photo: Multi-layer glue machine

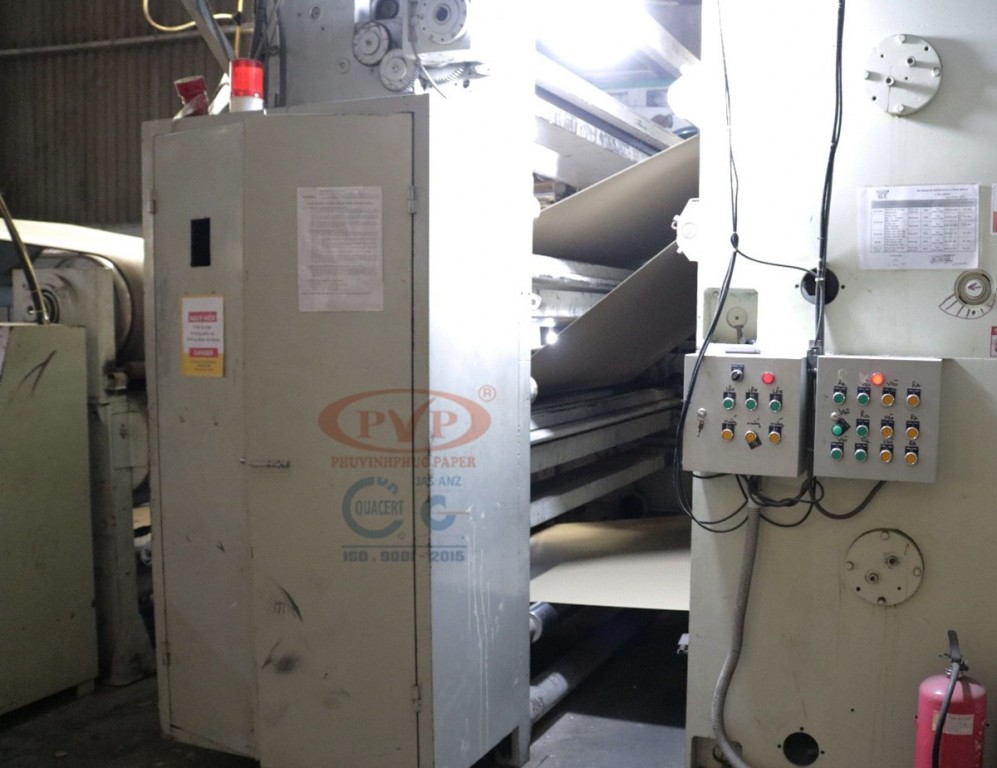

Sheet paper press drying conveyor: after being coated with glue, the paper layers are pulled to the pressing and drying conveyor for stick and shaping the carton boards.

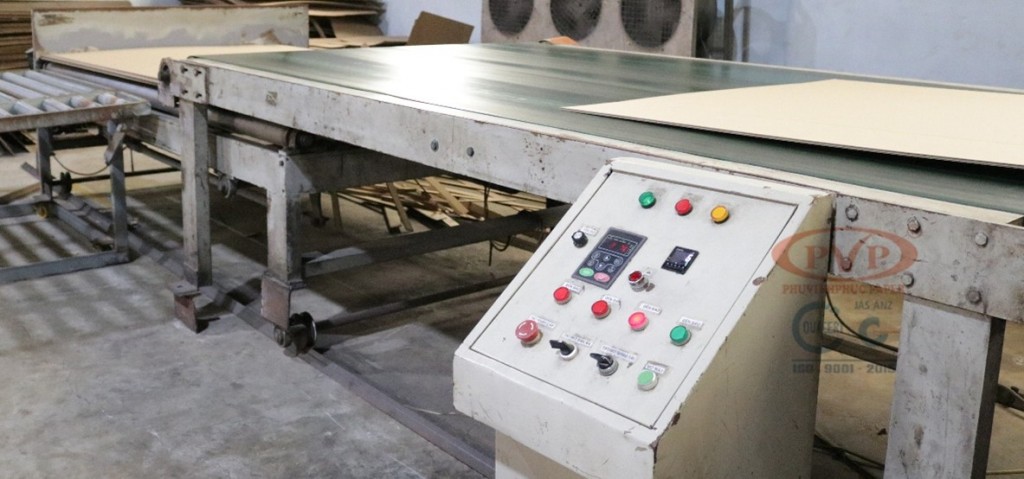

Photo: Sheet paper press drying conveyor
Slot and dividing board machine: 3-layer, 5-layer, 7-layer carton sheets will be slotted and divided according to the required sizes.
Photo: Slot and dividing board machine

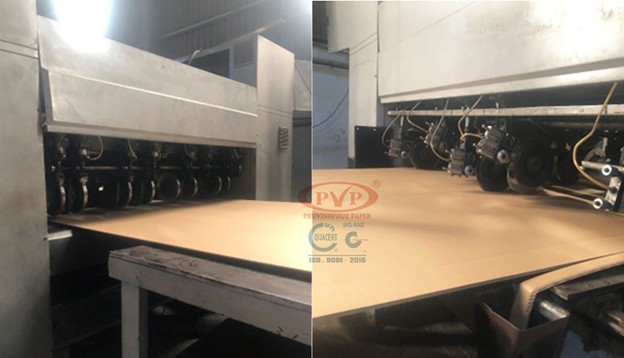

Cutting board machine: The corrugated carton board production line is an automatic line integrated slotting, dividing, and cutting machines, so the output product is a complete carton board. The computerized sheet cutting machine cuts accurately and the tolerant is <1mm, the cuts are neat and smooth, minimizing the waste.

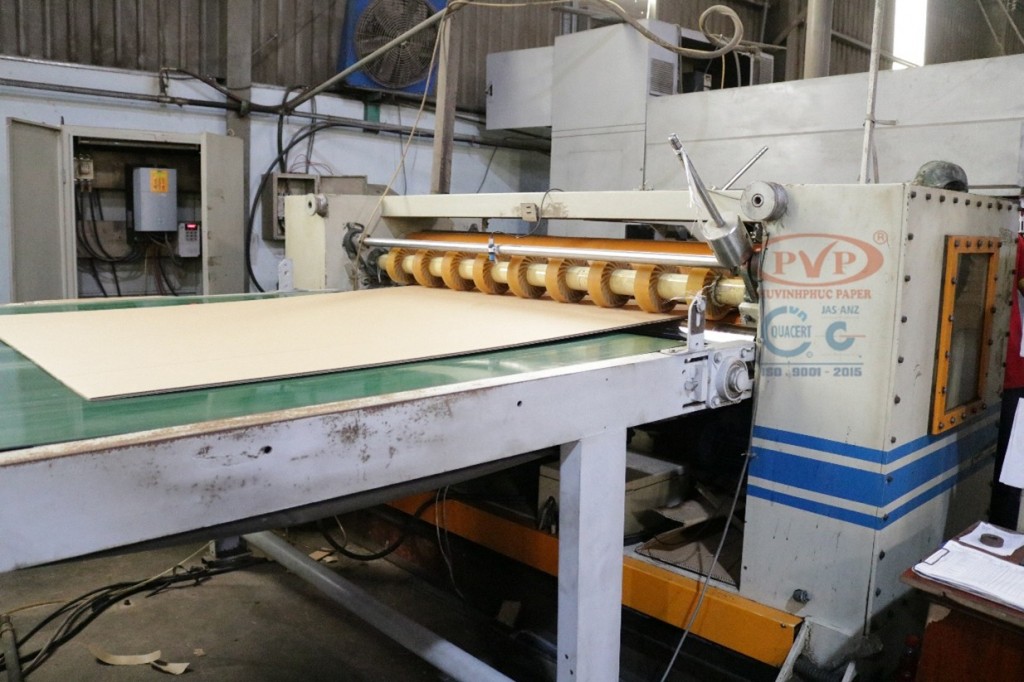

Photo: Cutting board machine
Counting and stacking sheet machine: Each carton sheet, after being cut into the required size, will go through a sheet counting and stacking machine according to automatically set parameters.
Photo: Counting and stacking sheet machine
In addition, to operate the corrugated carton line, it also need to have a boiler to provide heat and a glue mixing machine and other auxiliary systems.
2/ CARTON SLITTING MACHINE
PHU VINH PHUC factory have 2pcs of automatic slitting machines and 5 pcs of mechanical slitting machines.

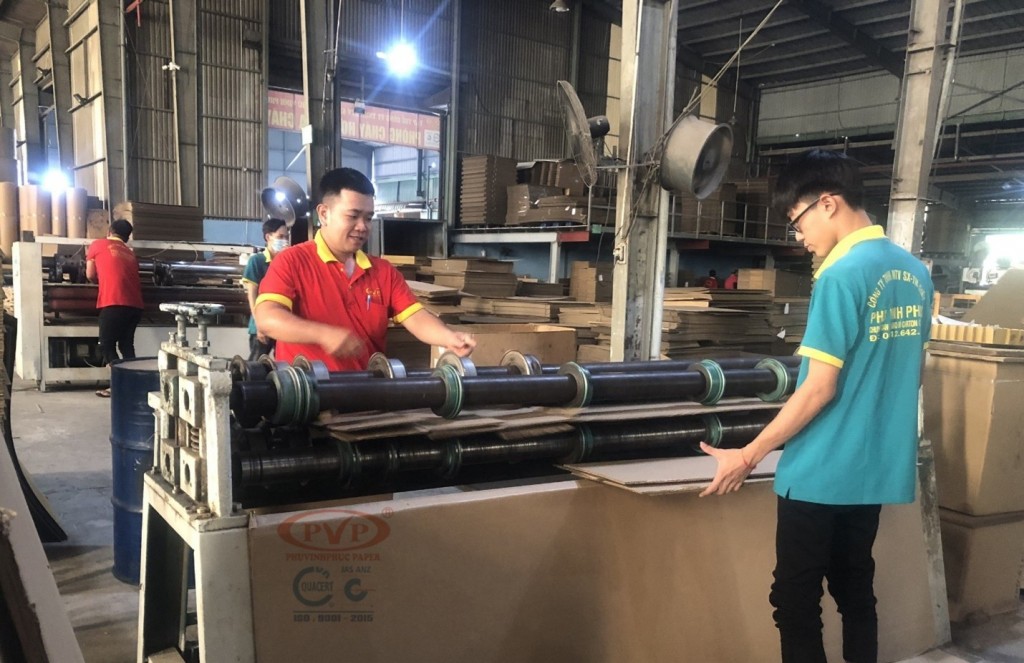

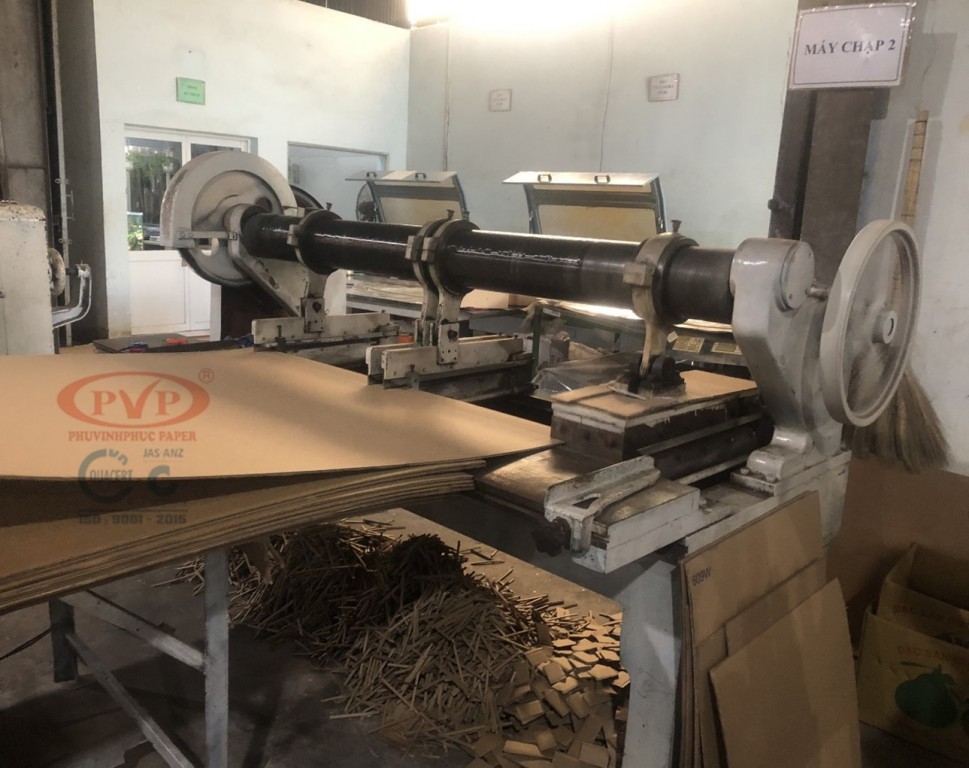

Photo: carton slitting machine
3/ PRINTING MACHINE
Phu Vinh Phuc has 7pcs of printing machine with both 2-color and 3-color type, vertical and horizontal printing, Flexo printing and spray printing, ensuring to meet the printing needs of small or large quantities, fast printing speed, high accuracy, high quality.

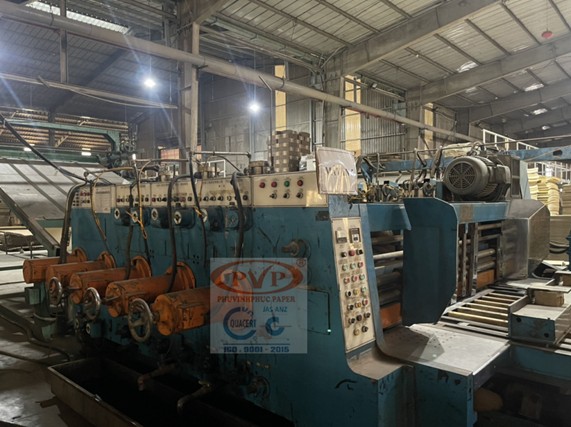

Photo: vertical printing machine
Photo: positioning the printing mold

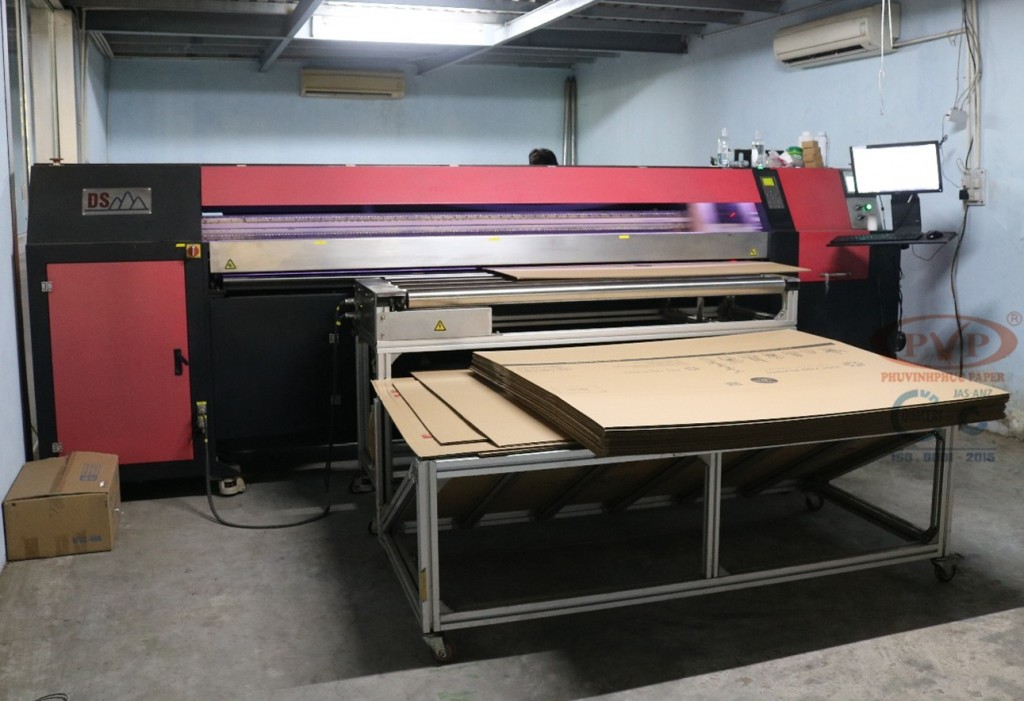

Photo: Spray Printing Machine
Photo: horizontal printing machine

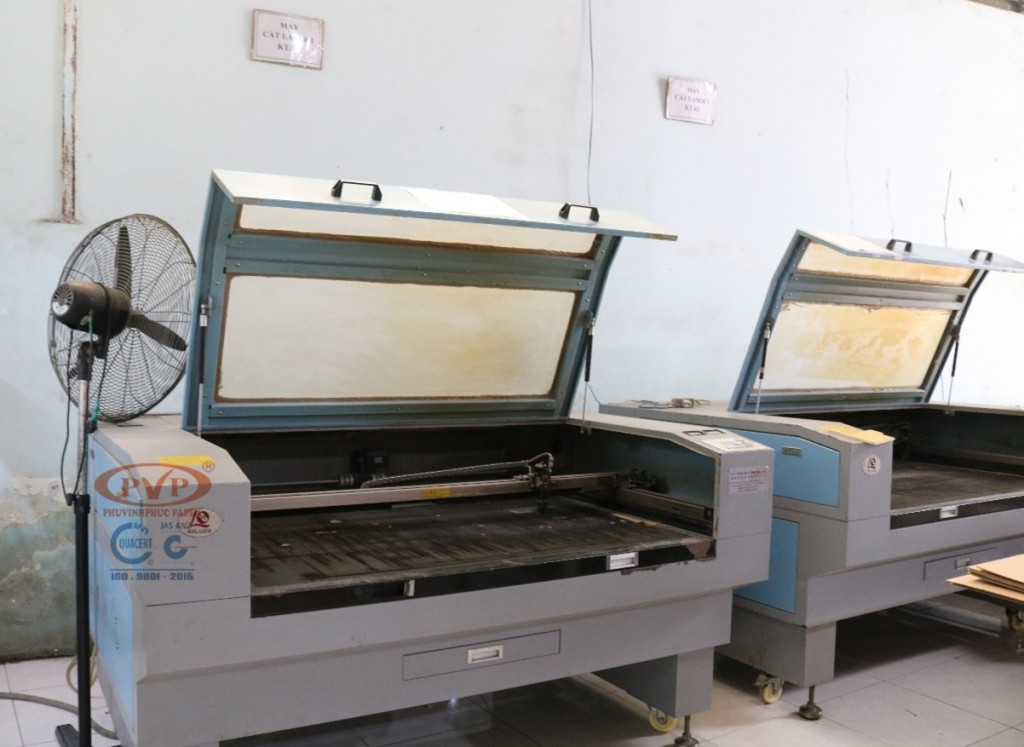

In addition, in the Flexo printing process, there is a stage of designing and creating printing molds using Lazer engraving technique.
Photo: Lazer engraving machine

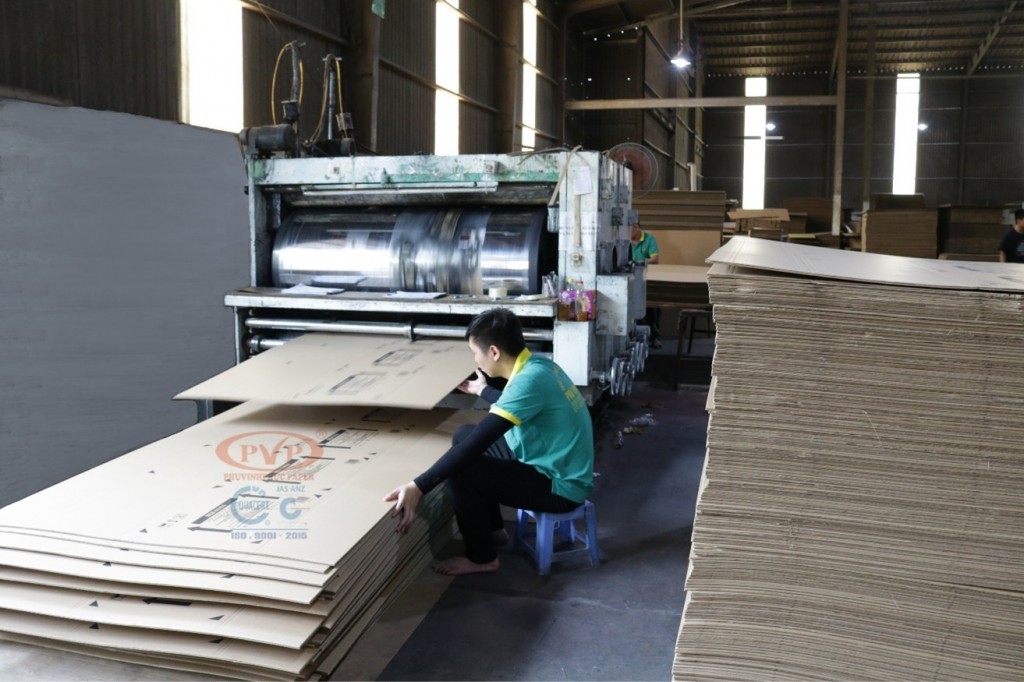

4/ CARTON SLOT CUTTING MACHINE
PVP is equipped with 3pcs of automatic slot cutting machines and 2 pcs of mechanical machines to help shape, slot and cut as well as remove excess parts to create the complete product size.

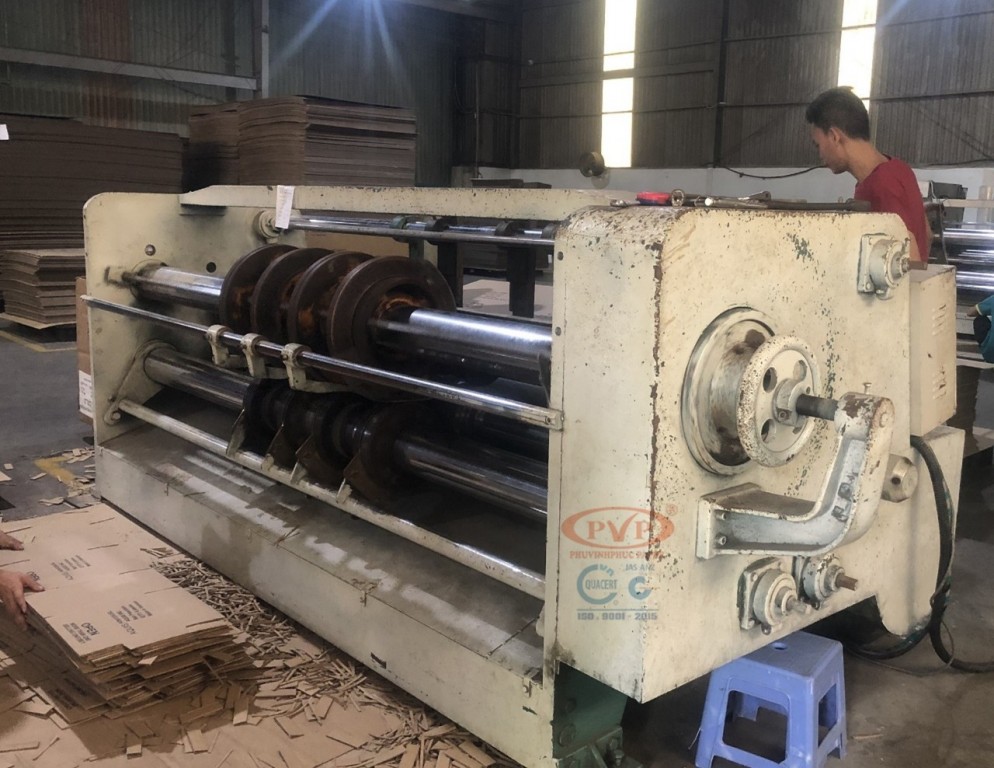

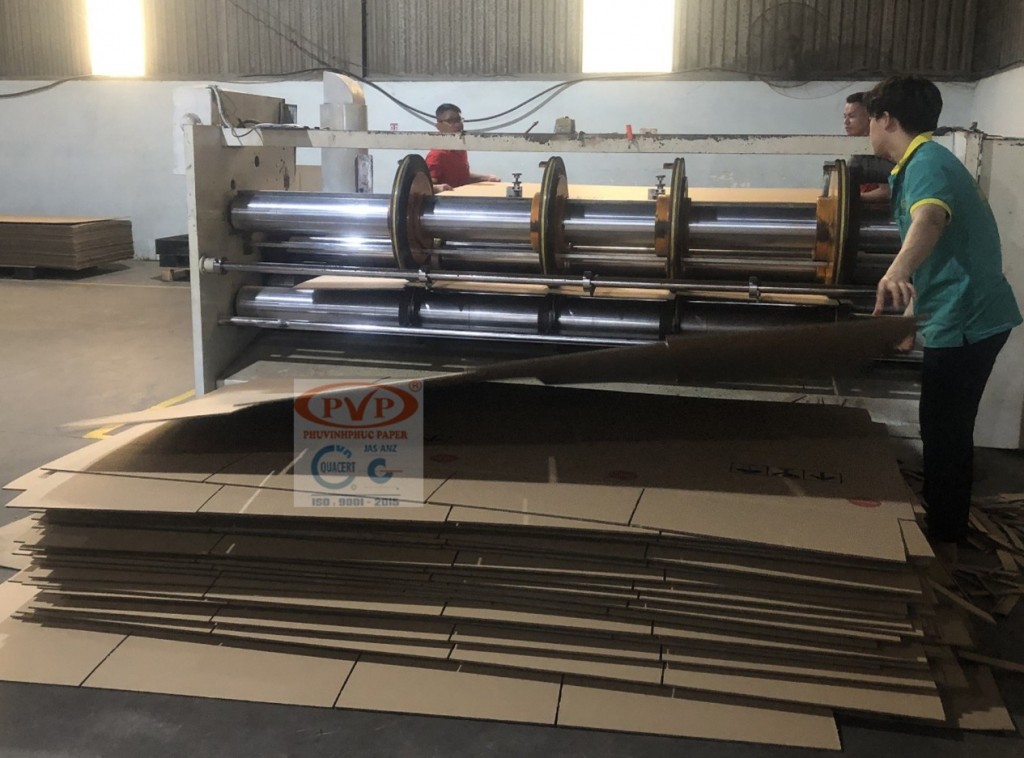

Photo: Slot cutting machine 1
Photo: Slot cutting machine 2
Photo: Slot cutting machine 3
5/ DIE-CUT CARTON MACHINE
Used to stamp, cut, and shape borders and curves on the paper surface according to the designed shape to complete the product creation process.

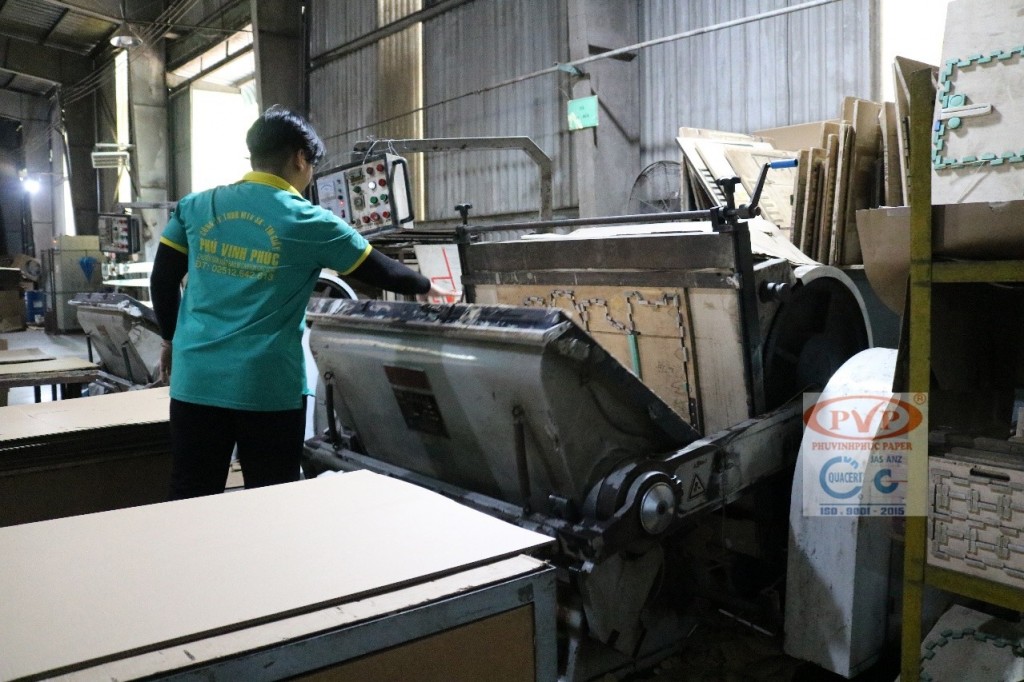

Photo: Die-cut carton machine
6/ CARTON GLUING MACHINE

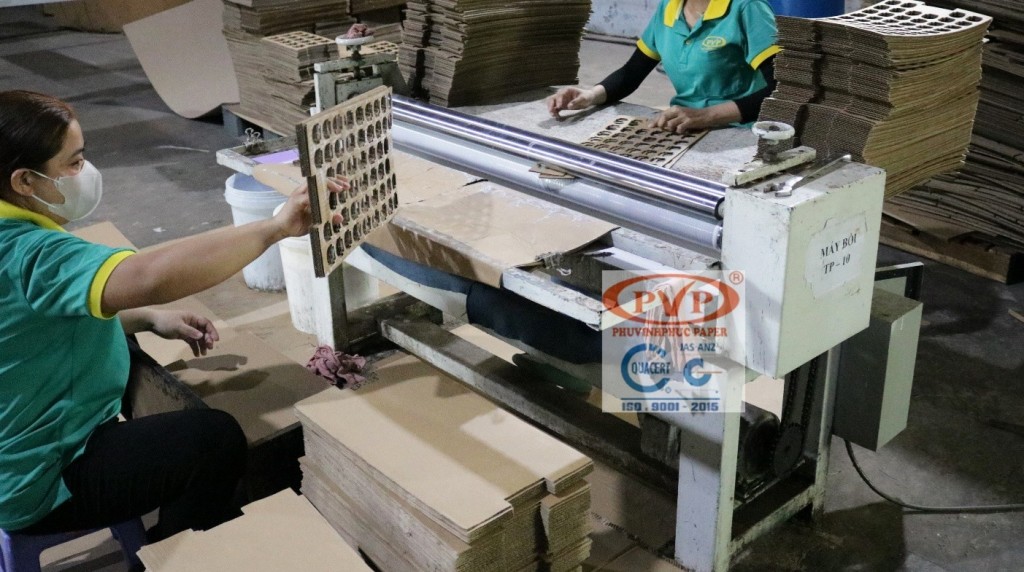

Apply glue to add layers of paper.
Photo: Gluing Machine
7/ THE BOX GLUING MACHINE AND THE BOX STAPLING MACHINE
The box gluing machine and the box stapling machine has the role of connecting the border lines of carton board to form a box shape quickly, firmly and productively.

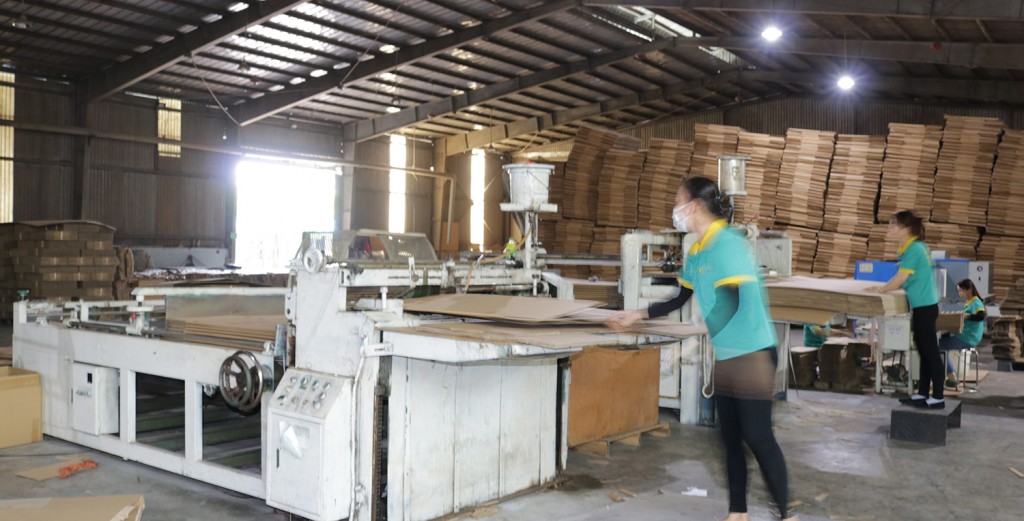

Photo: The Box Gluing Machine

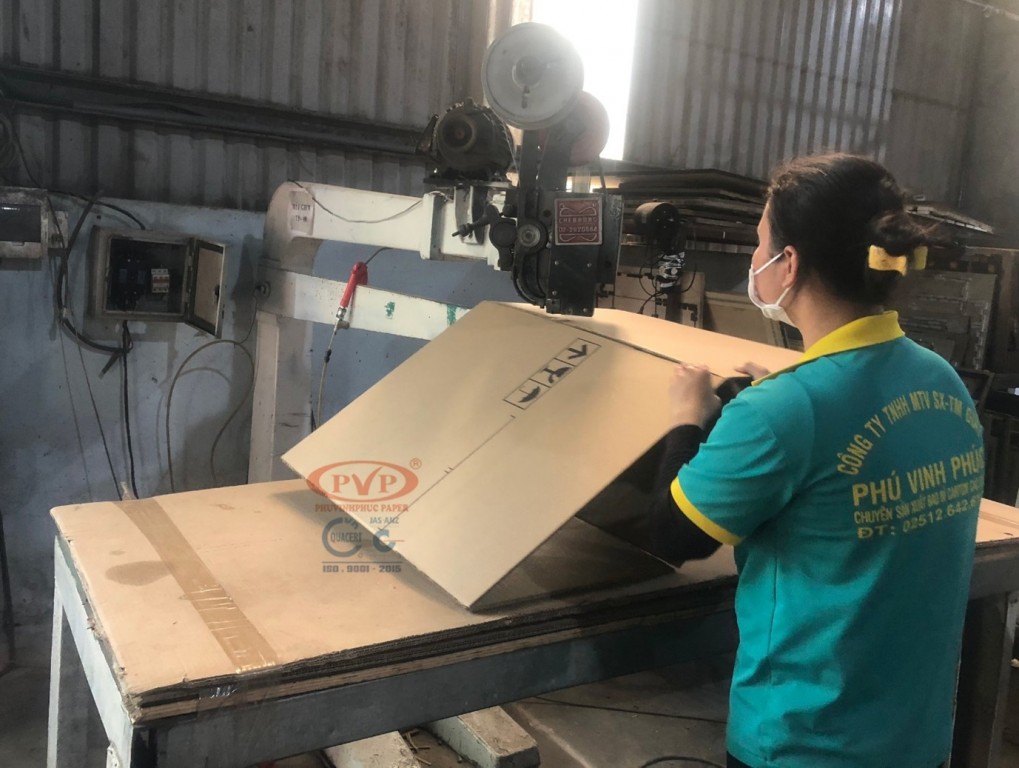

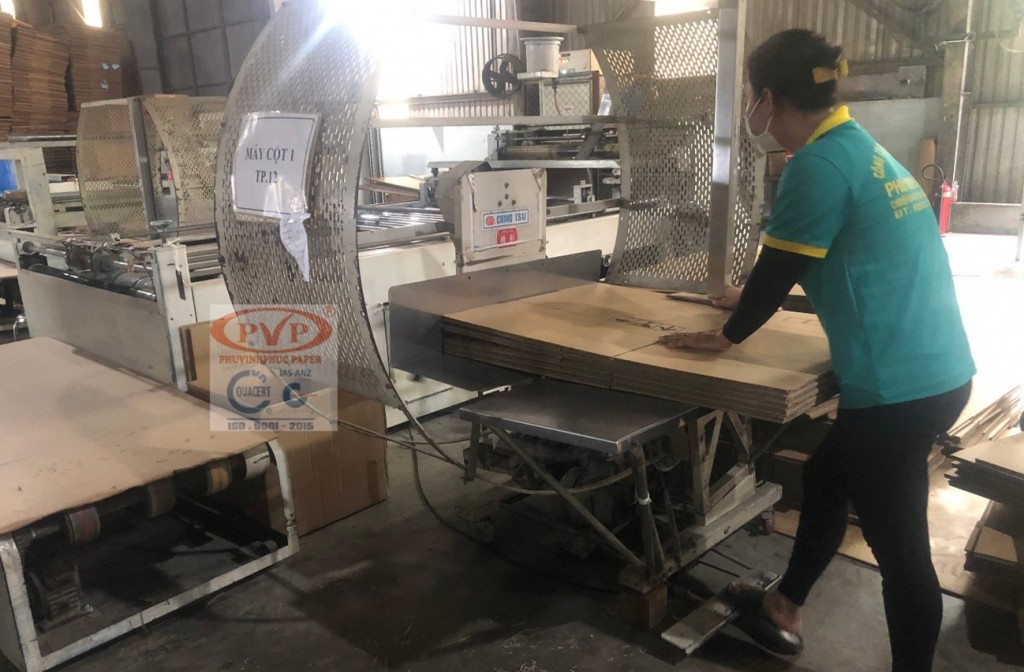

Photo: The Box Stapling Machine
8/ TYING MACHINE
Photo: Tying Machine
